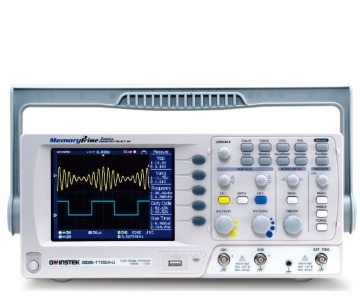

| Main Specifications |
GDS-1052-U |
GDS-1072-U |
GDS-1102-U |
| VERTICAL |
| Channels |
2 |
2 |
2 |
| Bandwidth |
DC ~ 50MHz (-3dB) |
DC ~ 70MHz (-3dB) |
DC ~ 100MHz (-3dB) |
| Rise Time |
<7ns Approx. |
<5ns Approx. |
<3.5ns Approx. |
| Sensitivity |
2mV/div ~ 10V/div (1-2-5 increments) |
| Accuracy |
±(3% x |Readout|+0.1 div + 1mV) |
| Input Coupling |
AC, DC & Ground |
| Input Impedance |
1M±2%, ~ 15pF |
| Polarity |
Normal & Invert |
| Maximum Input |
300V (DC+AC peak), CATII |
| Waveform Signal Process |
+ , - , FFT |
| Offset Range |
2mV/div ~ 50mV/div : ±0.4V , 10mV/div ~ 500mV/div : ±4V
1V/div ~ 5V/div : ±40V , 10V/div:±300V |
| Bandwidth Limit |
20MHz (-3dB) |
| TRIGGER |
| Sources |
CH1 , CH2 , Line , EXT |
| Modes |
Auto, Normal, Single, TV, Edge, Pulse Width |
| Coupling |
AC , DC , LF rej. , HF rej. , Noise rej. |
| Sensitivity |
DC ~ 25MHz : Approx. 0.5div or 5mV
25MHz ~50/70/ 100MHz: Approx. 1.5div or 15mV |
| EXT TRIGGER |
| Range |
±15V |
| Sensitivity |
DC ~ 25MHz : ~ 50mV ; 25M ~ 50/70/100MHz : ~15mV |
| Input Impedance |
1MΩ±2% , ~ 16pF |
| Maximum Input |
300V (DC AC peak) , CATII |
