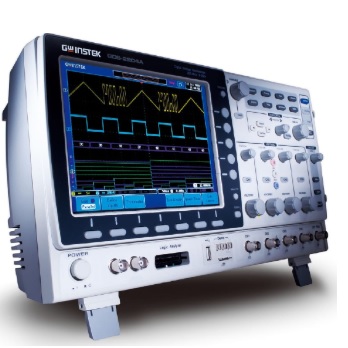

Máy hiện sóng số Digital Oscilloscope GW Instek GDS-2302A
300MHz, 2GS/s, 2 Ch. with RS-232, USB, VPO Digital Oscilloscope.
Key Performance Specifications
- 300MHz Bandwidth Range, 2 Input Channel
- 2GSa/s Real-time Sampling Rate and 2Mega Point Memory Depth for Half-channel applications
- 1GSa/s Real-time Sampling Rate and 1Mega Point Memory Depth for all Channels
- 100GSa/s Equivalent Time Sampling Rate
- 1mV /div to 10V/div of Vertical Range
- 1ns/div to 100s/div of Time Base Range
- 80,000 wfm/s of Waveform Update Rate
- 8 inch 800*600 High Resolution TFT LCD Display
Rich Features for Signal Analysis and System Debug
- Segmented Memory and Waveform Search Functions as Standard Functions to Optimize the Utilization of Long Memory Length
- Abundant Trigger Functions to Capture Demanded Signals
- Play/Pause and Zoom Window to Rapidly Navigate the Waveform details
- 36 Automatic Measurement Functions offer Direct Measurement Readings
