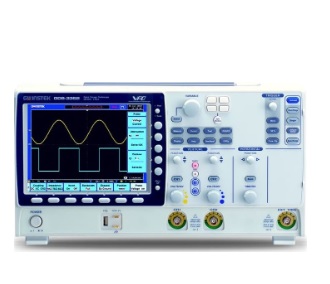

Máy hiện sóng số Digital Oscilloscope GW Instek GDS-3252

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy hiện sóng số Digital Oscilloscope GW Instek GDS-3252

Thông tin sản phẩm

Máy hiện sóng số Digital Oscilloscope GW Instek GDS-3252


Manufacturer Specs

Model GDS-3152 GDS-3154 GDS-3252 GDS-3254 GDS-3352 GDS-3354 GDS-3502 GDS-3504
Vertical
Input Channels 2Ch+EXT 4Ch+EXT 2Ch+EXT 4Ch+EXT 2Ch+EXT 4Ch+EXT 2Ch+EXT 4Ch+EXT
Bandwidth DC~150MHz(-3dB) DC~250MHz(-3dB) DC~350MHz(-3dB) DC~500MHz(-3dB)
Rise Time 2.3ns 1.4ns 1ns 700ps
Vertical Resolution 8 bits
Vertical Resolution@ 1MΩ 2mV~5V/div
Vertical Resolution@ 50/75Ω 2mV~1V/div
Input Coupling AC, DC, GND
Input Impedance 1MΩ// 16pF
DC Gain Accuracy +(3% X |reading| + 0.1div+ 1mV)
Polarity Normal and inverted
Maximum Input Impedance @1MΩ 300V (DC+AC peak), CAT I
Maximum Input Impedance @50/75Ω 5 Vrms ,CAT I
Offset Position Range 2mV/div ~ 100mV/div: 0.5V
200mV/div ~ 5V/div: 25V
Bandwidth Limit 20MHz (-3dB) 100MHz (-3dB) 200MHz (-3dB) 20MHz/ 100MHz/ 200MHz/ 350MHz (-3dB)
Waveform Signal Processing Addition, Subtraction, multiplication, division, FFT, FFTrms
Trigger
Source Dual channel: CH1, CH2, Line, Ext ; 4 channel: CH1, CH2, CH3, CH4, Line, Ext
Trigger Mode Auto (Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single
Trigger Type Edge, Pulse Width, Video, Runt, Rise & Fall, Alternative, Event-Delay (1~65,535) events, Time-Delay(10nS~10S), I2C, SPI, UART
TriggerHold-off Range 10ns~10s
Coupling AC, DC, LF rej, HF rej, Noise rej
Sensitivity DC~50MHz approx. 1div or 1.0mV
50MHz~150MHz approx. 1.5div or 15mV
