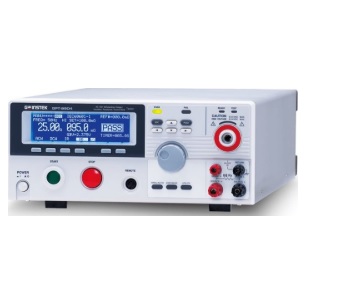

Máy kiểm tra độ bền cách điện GW Instek GPT-9904

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy kiểm tra độ bền cách điện GW Instek GPT-9904

Thông tin sản phẩm

Máy kiểm tra độ bền cách điện GW Instek GPT-9904


GPT-9900 Series Specification
AC Withstanding Voltage
Output-Voltage Range 0.100kV~ 5.000kV
Output-Voltage Resolution 2V/step
Output-Voltage Accuracy ± (1% of setting + 5V) with no load
Capacity 500 VA (5kV/100mA)
Maximum Rated Current 100mA (0.5kV
Output-Voltage Waveform Sine wave
Output-Voltage Frequency 50 Hz / 60 Hz selectable
Voltage Regulation ± (1% reading + 5V) [Maximum rated load ->no load]
Voltmeter Accuracy ± (1% of reading + 5V)
Current Measurement Range [1] 0.001mA~100.0mA
Current Best Resolution 0.001mA(0.001mA~1.100mA)
0.01mA(01.11mA~11.00mA)
0.1mA(011.1~100.0mA)
Current Measurement Accuracy ± (1.5% of rdg + 30 counts) when HI SET<1.11mA
± (1.5% of rdg + 3 counts) when HI SET=1.11mA
Window Comparator Method Yes
Sweep Function [2] Yes
RAMP (Ramp-Up Time) 0.1s~999.9s
TIMER (Test Time) [3] OFF, 0.5s~999.9s
DC Withstanding Voltage
Output-Voltage Range 0.100kV~ 6.000kV
Output-Voltage Resolution 2V/step
Output-Voltage Accuracy ± (1% of setting + 5V) with no load
Maximum Rated Load 100W (5kV/20mA)
Maximum Rated Current 20mA (0.5kV
Voltage Regulation ± (1% reading + 5V) [Maximum rated load ->no load]
Voltmeter Accuracy ( (1% of reading + 5V)
Voltage Regulation ± (1% reading + 5V) [Maximum rated load ->no load]
Voltmeter Accuracy ± (1% of reading + 5V)
Current Measurement Range [1] 0.001mA~20.0mA
Current Best Resolution 0.001mA(0.001mA~1.100mA)
0.01mA(01.11mA~11.00mA)
0.1mA(011.1mA~020.0mA)
Current Measurement Accuracy ± (1.5% of rdg + 30 counts) when HI SET<1.11mA
± (1.5% of rdg + 3 counts) when HI SET=1.11mA
Window Comparator Method Yes
Sweep Function [2] Yes
RAMP (Ramp-Up Time) 0.1s~999.9s
TIMER (Test Time) [3] OFF, 0.5s~999.9s
