Accuracy |
+/-0.2% F.S. +/-1 digit |
Capacity |
5N |
Resolution |
0.001N |
Overload |
Approx. 150% F.S.(It warns with light flashing and buzzer when the force is over 110% of capacity.) |
Sampling rate |
2000 data / sec. at maximum |
Testing speed |
120, 200, 300, 500, 1000, 1500mm / min (switchable) |
Stroke |

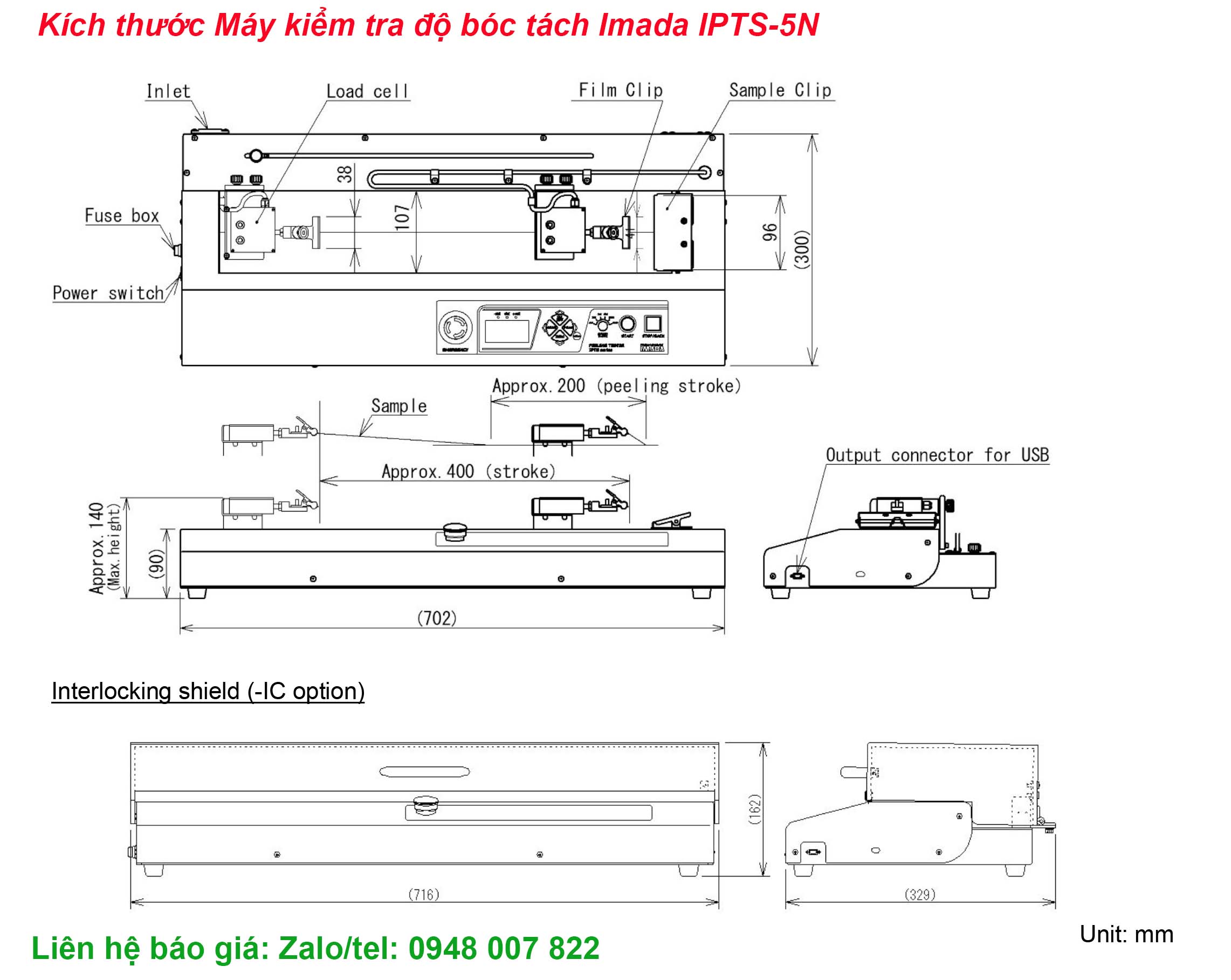

Travel of a load cell: Approx.400mm (Peeling length: Approx.200mm) |
Peel angle |
165-180 degree (Height and angle are adjustable.) |
Testable width of samples |
Adhesion:88mm
(Film clip: 40mm, Sample clip: 95mm) |
Testable thickness of samples |
Cover film: 0.5mm |
Safety device |
Emergency stop button, Overload prevention (Only when the power is turned ON) (*1) |
Power |
AC100 to 240V free input (*2) |
Weight |
Approx.11kg |
Operating environment |
Temperature: 0 to 40 degree Celcius / Humidity: 20 to 80% RH |
Accessory |
Force Recorder (graph drawing software), USB cable, Power cable, Film grip, Inspection certificate, Instruction manual |
