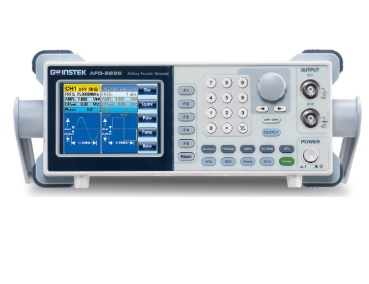

Máy phát xung tính hiệu GW Instek AFG-2225
2 Channel, 25MHz, w/Ext. counter, sweep, AM/FM/FSK
- Wide Frequency Ranges From 1μHz to 25MHz (sine/square wave)
- 1 μHz Resolution in Full Range
- Built-in Standard 120MSa/s, 10bit, 4k Points Arbitrary Waveform for Both Channels
- True Dual-Channel Output, CH2 Provides the Same Characteristics as CH1
- Couple, Tracking, Phase Operations of Dual Channel are Supported
- 1% ~ 99% Adjustable Duty Cycle for Square Waveform
- High Resolution and Colored TFT LCD with Friendly User Interface
- Multiple Editing methods to Edit Arbitrary Waveform Easily
- Built-in Standard AM/FM/PM/FSK/SUM/Sweep/Burst and Frequency Counter
- USB Host/Device Interface for Remote Control and Waveform Editing
Applications
- Power Supply/Transformer Simulations
- Traditional/Motor Power Applications
- Laboratory and Educational Research
