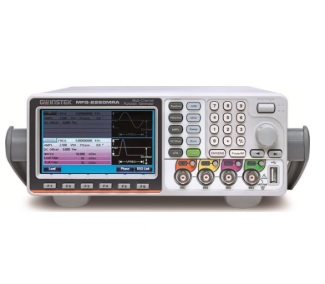

Máy phát xung tính hiệu GW Instek MFG-2160MR
60MHz Single Channel Arbitrary Function Generator with pulse generator, modulation, 320MHz RF signal generator
- Maximum Five Output Channels
- 2 Equivalent Performance Arbitrary Channels Frequency : 1 Hz~10/20/30/60MHz
- RF Channel Frequency (FG/ARB/MOD) : 160/320MHz
- Pulse Generator Frequency : 25MHz
- Power Amplifier : Low Frequency, 100kHz, Output 20W (model numbers ending in A)
- True Point by Point Output Arbitrary Waveform Function : 200MSa/s, 100MHz Repetition Rate, 14-bit Resolution,16k Point Memory Depth
- Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis
- Frequency Counter : 150MHz, 8 bits
- AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
- USB Host/USB Device/LAN (MFG-22XX only)
- 4.3 Inch TFT Color Display
