Thiết bị đo chiều dày lớp phủ BB 20 Trotec

Mã sản phẩm: BB 20 |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

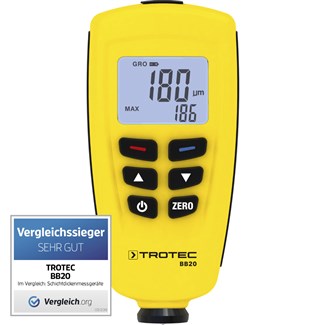

Thiết bị đo chiều dày lớp phủ
Model: BB 20
Hãng: Trotec
Thông tin sản phẩm
- Dual sensor designed to measure the thickness of non-magnetic coatings on all magnetic and non-magnetic metals
- Broad measuring range from 0 to 1,250 µm
- Alarm function that alerts the user when predefined thickness thresholds have been exceeded
- A variety of useful statistical functions like minimum, maximum or average coating thickness
- Two-point calibration for high level of accuracy
- Memory for up to 400 measuring values
- USB interface for PC measuring data transfer
- Can be used with one hand only
- Backlit display
- Auto power off
- Excellent value for money

Thông số kỹ thuật

- Sensor: Ferromagnetic surfaces
- Functioning principle: Magnetic induction
- Guaranteed tolerance: (±3% + 1) µm of the measuring value
- Bending radius minimum (surface): 1.5 mm
- Smallest measuring area: Ø 7 mm
- Critical primary layer thickness: 0.5 μm
- Measuring range: 0 to 1,250 µm
- Accuracy: max. 0.1 µm

- Sensor: non-ferrous metallic surfaces
- Functioning principle: Eddy current
- Guaranteed tolerance: (±3% + 1.5) µm of the measuring value
- Bending radius minimum (surface): 3 mm
- Smallest measuring area: Ø 5 mm
- Critical primary layer thickness: 0.3 μm
- Measuring range: 0 to 1,250 µm
- Accuracy: max. 0.1 µm
- Functions: Maximum value, minimum value, average value and standard deviation, alarm function, backlight, auto power off, memory for up to 400 measuring values
- Dimensions (height x width x depth) / Weight: 110 x 54 x 24 mm / 100 g (incl. battery)
