| Capacity |
1000N |
Maximum Height
of a Sample (*1) |
320mm |
Deflection at
Maximum Load |
[Standard models] less than 0.25mm
[Long stroke (optional)] less than 0.6mm |
| Test speed |
0.5 to 600mm/min |
| Measuring modes |
Manual / Jog / Cycle mode |
| Functions |
Counter (number of tests to repeat): Max. 65535 times
Timer (pausing time): Up to 99 min 59 sec 9 (by 0.1 sec)
Digital length limit (travel distance): by 0.1mm
Storing operating patterns: up to 5 patterns |
| Control |
Emergency stop, force control (*2), overload prevention (*2, *3), external signal input |
Operating Temperature
Humidity |
0 to +40 degree Celsius
35 to 70% (avoid condensation) |
| Power |
AC100 to 240V, 50/60Hz
(Select from 100, 120 and 230V. Accessories are provided accordingly.) |
| Dimensions |

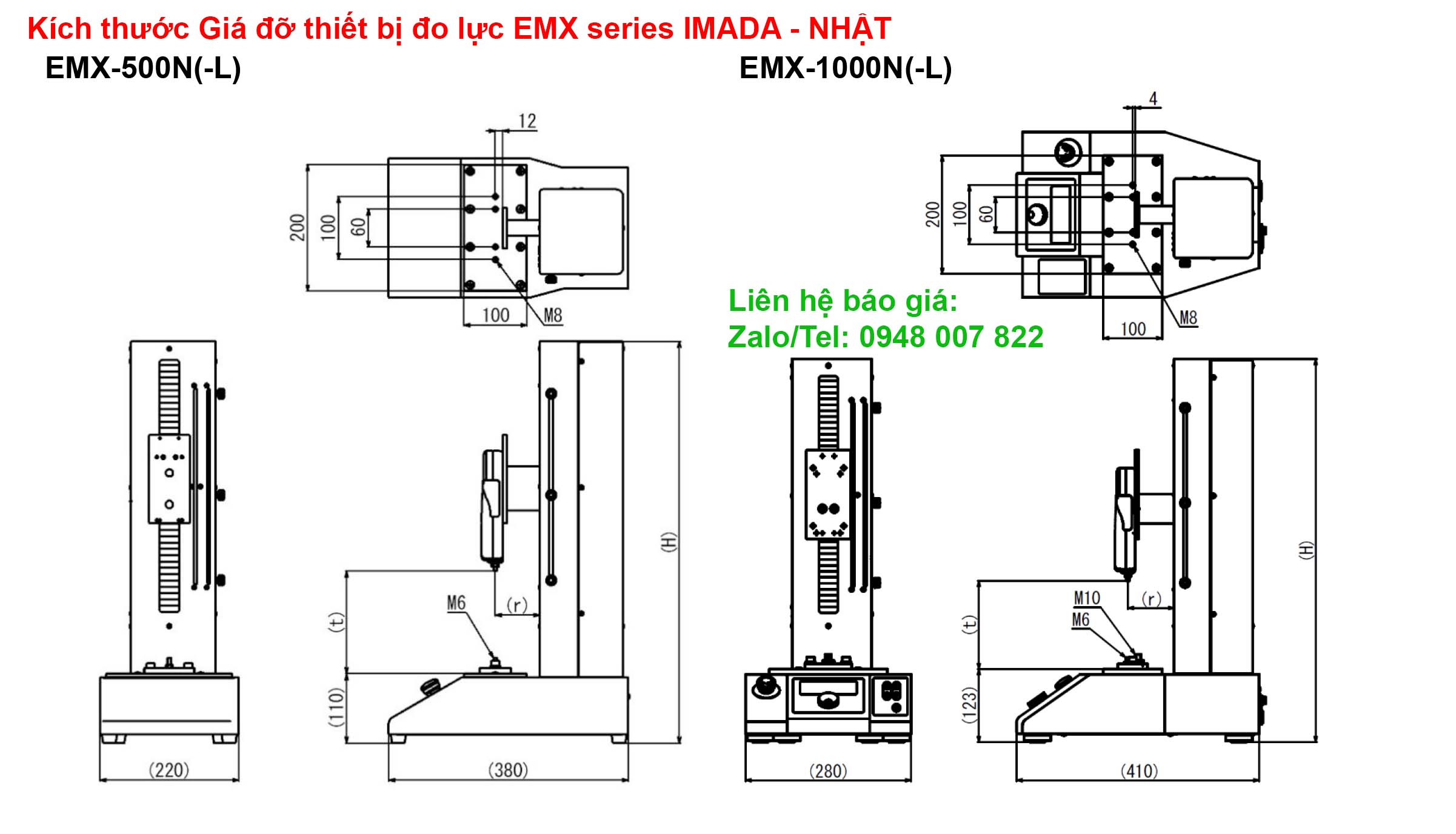

See [Dimensions] |
| Weight |
Approx. 23.5kg |
| Available Options (*4) |
Long stroke, length scale |
| Accessories |
Operation manual, power cable, spare fuse, tools, GF-2 (Grip mounting adaptor) |
Mountable
Force Gauges (*5) |
Mechanical Force Gauge: FB, PS, PSM, PSH series
Digital Force Gauge: DST, DSV, ZTS, ZTA series
Load cell: DPU series (up to 500N *6) |
