| Capacity |
1000N (100kgf) |
| Stroke when a gauge is mounted (*1) |
280mm |
| Test speed |
6 to 180mm/min |
| Gauges that can be combined (*2) |
Popular and standard model(Load cells and high capacity model force gauge cannot be combined.) |
| Function |
Manual mode, Single cycle mode, Continuos cycle mode |
| Control |
Emergency button and operation control by load value(*3), Overload prevention(*3)(*4) |
| Safety devices |
Stroke limit, emergency stop button |
| Power |
AC100V to 240V, free input |

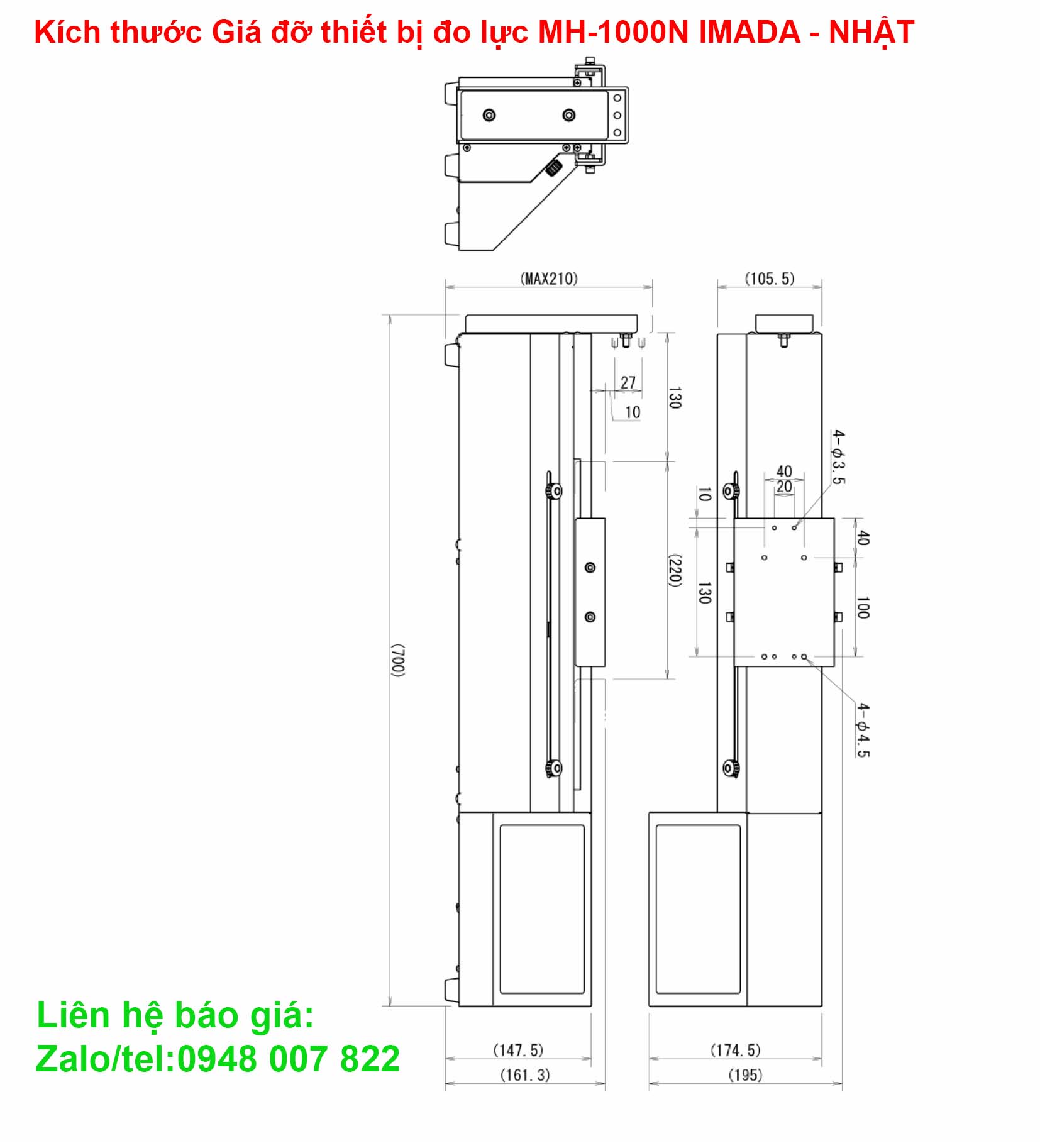

| Size |
Please refer to dimensions |
| Weight |
Approx.14kg |
| Option |
Speed range change, Encoder, Length meter |
| Accessory |
Instruction manual, Power cable, Gauge mounting plate, Cover, Spare fuse, and Tools |
