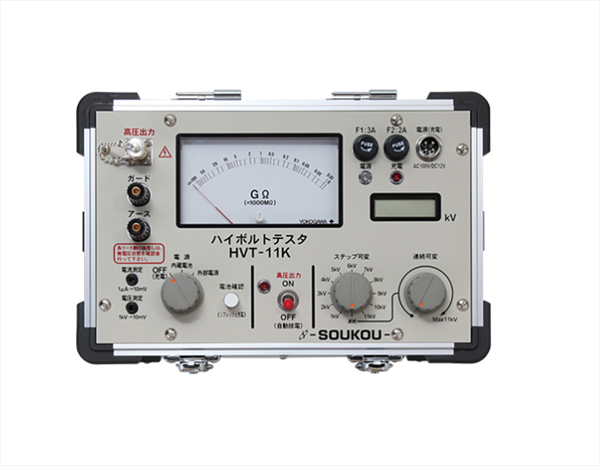

| Use power |
3 power supply system (built-in battery, the DC external power supply, AC external power supply) |
| Internal battery |
Nickel-cadmium battery (DC12V, 2.5Ah) charging time (about 3 hours) |
| DC external power supply |
DC12V (11 ~ 14V) power supply capacity 3A or
* that power output terminal is not grounded |
| AC external power supply |
AC100V ± 10V 50 / 60Hz
power supply capacity voltage upon the occurrence (or more 50VA), charging (more than 20VA) |
| Output voltage |
DC0 ~ 11kV (negative polarity) |
| Output current |
2mA (short-circuit), 600μA (when 11kV occurs) |
| Ripple |
Within ± 1% of the output voltage value (1 ~ 11kV) |
| Step voltage setting error |
Within ± 1% against FS11kV |
| voltmeter |
31/2 digit LCD display |
| Display rangeresolution |
～ 12KV 0 0.01KV |
| Measurement accuracy |
11kV for ± 1% ± 1dgt |
| Insulation resistance tester |
Analog indicating instrument |
| Effective measuring range |
～ 100GΩ 10Emuomega (1Jiomega = 1,000Emuomega)
* 1 in the voltage range of ~ 11kV 3 digits corresponding to the respective set value
, however, 11kV until 100GΩ
range output voltage effective measurement
1KV 10M ～ 10Jiomega
2KV 20M ～ 20Jiomega
· ·
· ·
· ·
100M ～ 100Jiomega 10KV
11KV 110M ～ 100Jiomega |
| Measurement accuracy |
Within 10% ± to the indicated value (at an effective measurement range) |
| Current recorder output |
1μA in DC10mV |
| Output accuracy |
100mV for ± 3% within
* that the input impedance of the recorder is 1MΩ or more |
| Voltage recorder output |
1kV in DC10mV (for recorder code 1.6m) |
