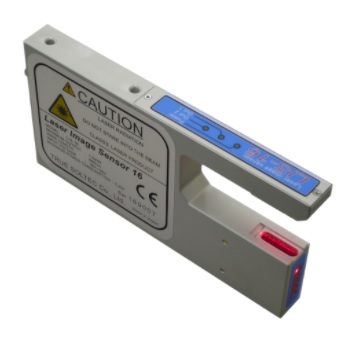

Thiết bị kiểm tra dây cáp bằng laser True Soltec
When a stripped wire passes in a laser beam curtain on the feeding route, LIS makes up its proportional image quickly and detects errors such as non-stripping, wire-cutoff, and water protection seal’s insertion error. Then, the speedy image processing to the proportional image allows performing high level inspections such as measuring stripped length, strands width and detecting end-open, whiskers and so on, which is impossible for conventional sensors to detect.
This system also has functions to automatically correct the image data if a cable is curved, and can perform inspection with high resolution, using sub-pixel processing.
Features:
- Self–trigger for measurement
- Easy installation (installable on almost any downsized crimping machines)
- Teaching a good sample only once allows proceeding to inspection.
- With PC, image processing and data save is possible
- Direct access from a server machine through a computer network
