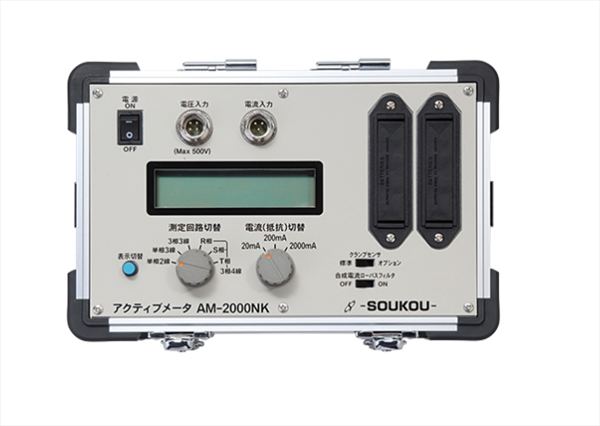

Thiết bị kiểm tra dòng dò AM-2000NK Soukou

Mã sản phẩm: AM-2000NK |
Thương hiệu: Soukou
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Thiết bị kiểm tra dòng dò
Model: AM-2000NK
Hãng: Soukou
Thông tin sản phẩm
Use power AA batteries (1.5V) 8 this
Measuring circuit Single-phase two-wire, single-phase three-wire, three-phase three-wire, 3-phase 4-wire
Voltage measurement range AC80 ~ 500V accuracy ± 1% rdg ± 5dgt
Current measurement range Resultant current 20mA (0.1 ~ 19.99mA) accuracy 1.5 Pasento rdg ± ± 50Dgt
200MA (1 ~ 199.9MA) accuracy ± 1% rdg ± 10dgt
2000MA (10 ~ 1999MA) accuracy ± 1% rdg ± 10dgt
Active current 20mA Accuracy ± 3% rdg ± 50dgt (more 0.1MA)
200 / 2000MA accuracy ± 2% rdg ± 10dgt
Insulation resistance measurement range Measurement range ~ 5Emuomega 0.5Keiomega
※ effective measurement range is according to the measurement range of the active current. Therefore the effective measurement range in each circuit voltage is as follows.
100V circuit ~ a minimum of 1 megohm 0.5Keiomega
200V circuit ~ 2Emuomega 1Keiomega
400V circuit 2kΩ ~ 4MΩ
Display resolution 20mA range (0.001MΩ) 2MΩ more than 0.01Emuomega
200MA range (0.1kΩ) 200kΩ more than 1K
2000MA range (0.01kΩ) 20kΩ more than 0.1kΩ
Measurement accuracy ± 5% rdg ± 50dgt (20mA range)
if active current is greater than or equal to 0.1MA
± 3 Pasento rdg ± 10Dgt (200 / 2000MA range)
External dimensions 170 (D) × 265 (W) × 190 (H)
weight 3kg
accessories High-performance clamp sensor (30φ)
test code set (with storage bag)
eight-manual AA batteries
option Large clamp LCA-70 (68φ)
standard price 35,000 yen (consumption tax not included)
