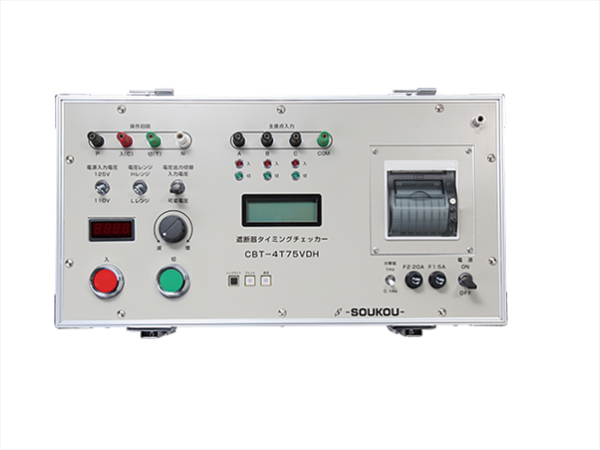

Thiết bị kiểm tra máy cắt CBT-4T75VDH Soukou

Mã sản phẩm: CBT-4T75VDH |
Thương hiệu: Soukou
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Thiết bị kiểm tra máy cắt
Model: CBT-4T75VDH
Hãng: SouKou
Thông tin sản phẩm
Use power DC110V / 125V ± 10%
Voltage output DDC10 ~ 30V (H range) / 25 ~ 75V (L range)
Output current 17A (0.2 seconds), 1A (continuous)
Output control "ON" between the input -N output at the switch
"OFF" switch in the OFF -N between the output
voltmeter 199.9V (resolution 0.1V)
Measurement accuracy ± 0.5% rdg ± 5dgt
Sampling rate 2.5 times / sec.
Contact measurement function Measurements CH 3CH
Measurement time 0 ~ 1000ms (resolution 0.1Ms)
0 ~ 10000Ms (resolution 1ms)
measurement error 0.01% rdg ± 0.3ms (resolution 0.1Ms)
0.01 Pasento rdg ± 6Ms (resolution 1ms)
Detecting circuit Contact input detection voltage DC24V measure current up to 30mA
Record start condition Measurements start when you press the "ON" or "OFF" of the voltage output operation
Contact status display function When measuring contact is closed state, the input lamp (red) lights under each terminal
during the measurement contacts are open-circuit condition, each terminal under switching lamp (green) is lit
display 20-digit 4-line LCD display
Print out output Built-in printer (paper width 58mm)
operating time, printing a non-assortment time at the printer
External dimensions 250 (D) × 480 (W) × 260 (H) mm
weight About 10.3kg
accessories Printer paper × 2 Volume, fuse, manual
