Thiết bị kiểm tra máy cắt DTT-5C Soukou

Mã sản phẩm: DTT-5C |
Thương hiệu: Soukou
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

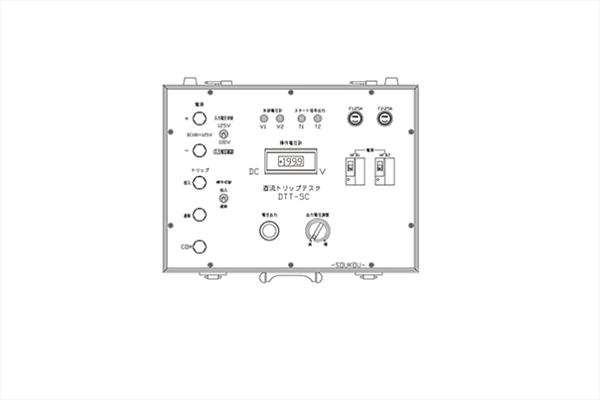

Thiết bị kiểm tra máy cắt
Model: DTT-5C
Hãng: SouKou
Thông tin sản phẩm
Input power source DC100 / 125 ± 15%
switching of * input voltage will be made in the switch.
Voltage output range DC25 ~ 75V (input power DC100 / 125V)
Apply trip
coil current
50A or less (one second) (input power DC100V)
40A or less (one second) (input power DC125V)
Overcurrent protection Output suppression in trip coil current or more of the output (1A or less)
automatic return in less than or equal to the output suppression
Output voltage meter 199.9V (resolution 0.1V) 7-segment LED
Measurement accuracy ± 0.5% rdg ± 5dgt
Sampling rate 2.5 times / sec.
External voltmeter terminal In parallel with the voltmeter will provide a terminal for external voltmeter.
Start signal output terminal For counter detects a start signal, and providing an output terminal. By pressing the voltage output switch, and the output voltage has been adjusted from the start terminal.
External dimensions 470 (D) × 345 (W) × 185 (H)
weight About 12kg
accessories Manual, fuse (25A)
※ various test code is not included.
