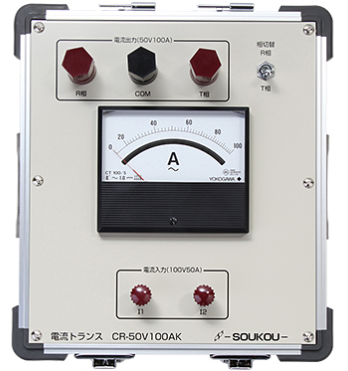

- in combination with OCR tester can flow the current to 100A
- R · T phase with the change-over switch
- polarity not be checked with an insulating transformer adopt the current passed through the ※ input terminal, 2 times the current of the input current to the output terminal There will occur. (For example, 50A of the input current, the output terminal, 100A of current is generated. At that time, the voltage will be equal to one half of the input.)
Thông số kỹ thuật
| Input voltage |
AC100V 50 / 60Hz |
| Output voltage |
AC50V |
| Input current |
AC0 ~ 50A |
| Output current |
AC0 ~ 100A (10 minute rating)
※ However 30 seconds in conjunction with OCR tester. |
| ammeter |
AC0 ~ 100A 1.0 grade (type moving coil) with mirror |
| External dimensions |
270 (D) × 240 (W) × 245 (H) |
| weight |
About 18kg |
| accessories |
Test code manual case cover |
