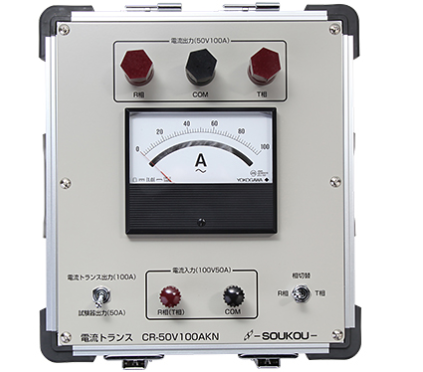

- current transformer output (100A) / test output (50A) without the hassle of rewiring with the change-over switch
- lightest 12kg (adopt a single-winding transformer)
- R / T phase with the change-over switch
Thông số kỹ thuật
| Input voltage |
AC100V 50 / 60Hz |
| Output voltage |
AC50V |
| Input current |
AC0 ~ 50A |
| Output current |
AC0 ~ 100A (10 minute rating)
※ However 30 seconds in conjunction with OCR tester. |
| ammeter |
AC0 ~ 100A 1.0 grade (type moving coil) with mirror |
| External dimensions |
270 (D) × 240 (W) × 245 (H) |
| weight |
About 12kg |
| accessories |
Test code manual case cover |
