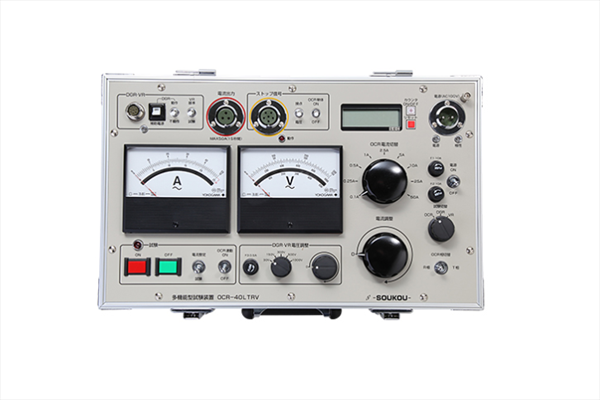

Thiết bị kiểm tra relay OCR-40LTRV Soukou

Mã sản phẩm: OCR-40LTRV |
Thương hiệu: Soukou
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Thiết bị kiểm tra relay
Model: OCR-40LTRV
Hãng: SouKou
Thông tin sản phẩm
Use power AC100V ± 10% 50 / 60Hz
Power capacity Up to about 1000VA below 40A at the output
Output current Output range AC0 ~ 40A (40A 15 seconds rating)
range AC0.1 / 0.25 / 0.5 / 1 / 2.5 / 5/10/25 / 50A
Maximum load impedance 0.1A range: 4Ω 0.25A range: 2Omu
0.5A range: 1Ω 1A range: 0.5Omu
2.5A range: 0.8Ω 5A range: 1Omu
10A range: 0.5Ω 25A range: 0.8Omu
50A range: 0.5Ω (40A at the output)
ammeter 0.1 / 0.25 / 0.5 / 1 / 2.5 / 5/10/25 / 50A
1.0-class effective value in terms of method of moving coil-shaped average value
Output voltage Output range AC0 ~ 1000V
Output capacity 40VA
range AC30 / 150/300/500 / 1000V
voltmeter AC30 / 150/300/500 / 1000V
1.0 grade moving coil type True RMS conversion method
Trip current Short circuit 10A output open circuit voltage 100V
counter Measurement range 0 ~ 199.999sec resolution 1Ms
200.00 ~ 1999.99Sec resolution 10ms (automatic borrow)
contact a contact, b contact automatic detection
Voltage DC, AC both 10 ~ 220V applied, removed
Self-powered Relay is there is no power at the same time tester and operated, about 5 minutes counter stop display time
OCR alone Current argument detects the current change of the type of circuit breaker disconnect
Auxiliary power AC100V (outputs the input power) 5A
External dimensions 270 (D) × 440 (W) × 220 (H)
weight About 16kg
accessories Test code set (with storage bag) manual case cover
