| Model |
FA Plus2 |
eFA Plus2 |
| Features |
Adjustment is required when change the load cell |
Load cell interchangeable eZ Connect series (no need for adjustment) |
| Accuracy |
The accuracy of connected load cell |
The accuracy of connected load cell
＋
±0.2% F.S. (*1) |
| Unit of measurement |
Depends on load cell and settings
(N, kN, kgf, lbf, N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in)（*2） |
| Display |
4-digit |
| Display update |
16 / sec |
| Sampling rate |
2000 data / sec at maximum (*3) |
| Battery |
AC adapter（AC100～240V）(*4) |
| Operating environment |
Temperature: 0～40 degree Celsius Humidity: 20～80%RH |
| Functions |
Customized display (header and footer), Peak hold (tension and compression), Comparator (judgment of OK or NG), Display of AD value, Reversible display, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, 1st/2nd peak, Displacement detection at force peak value, Displacement zero reset at selected force, setting lock |
| Output |
RS232C (baud rate available from 57600bps to 9600bps), USB, 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm, Sub comparator 2 steps (output of large or small judgment), USB flash drive, Displacement. |
| Overload warning |
Approx.110%F.S. (Warning message and alarm) |
| Available liner scales |
Online driver output (a line receiver according to RS422/485 must be built in.)
Open collector output (Voltage drop between contacts must be smaller than 0.5V.) |
| Weight |
1100g |

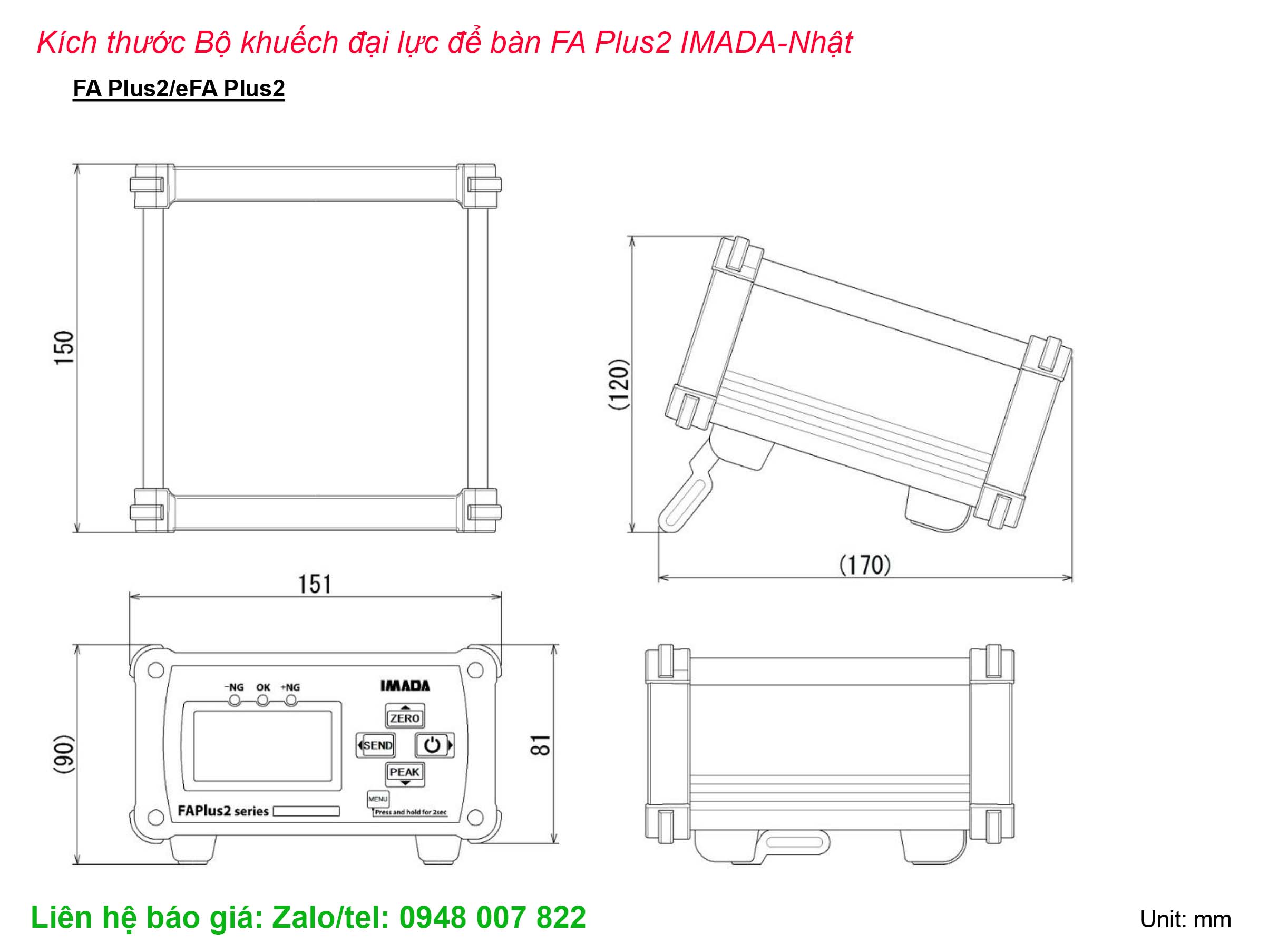

| Dimensions |
Refer to dimensions |
| Accessories |
AC adapter (only for standard model), Force Logger (software for data logging) (*5), USB cable, Adapter for USB flash drive (*6), Instruction manual |
| Inspection certification |
– (*7) |
