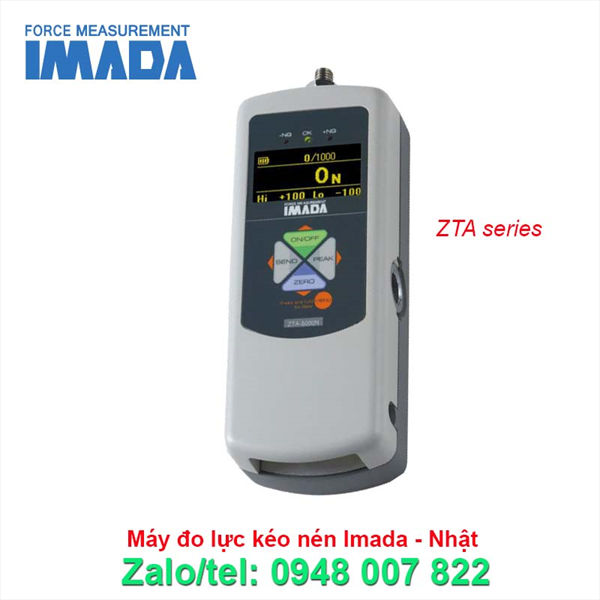

| Feature |
Advanced model with various functions such as data saving in USB memory stick, displacement I/O and more. |
| Accuracy |
+/-0.2%F.S.+/-1digit |
| Unit of measurement (*1) |
N, kgf, lbf (*2) |
| Display |
4-digit Organic EL |
| Display update |
16 / sec |
| Sampling rate |
2000 data / sec at maximum (*3) |
| Battery |
8 hours (2 hours charge) (*4) |
| Safe overload rating |
Approx.200%F.S. |
| Operating environment |
Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
| Function |
Customized display (header and footer), Peak hold (tension and compression),
Internal 1000 points data memory, Comparator (judgment of OK or NG),
Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off),
Dumping,Time display, 1st/2nd peak,Displacement detection at force peak value,
Displacement zero reset at selected force, setting lock |
| Output |
USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),
Comparator 3 steps (-NG/OK/+NG), Overload alarm,
Sub comparator 2 steps (output of large or small judgment), USB flash drive, Displacement. |
| Overload warning |
Approx.110%F.S. (Warning message and alarm ) |
| External connecting switch |
SEND (a point of contact holding), Zero reset, Peak ON/OFF setting |
| Available linear scales (*6) |
– Online driver output (a line receiver according to RS422/485 must be built in.)
– Open collector output (Voltage drop between contacts must be smaller than 0.5V. |
| Weight |
Approx.490g (*7) |
| Dimensions |
Please refer to dimensions. |
| Accessory(*6) |
AC adapter, Inspection certificate, CD driver (including simple software for data logging),
Attachments (The set of attachments varies according to range.),
USB cable,Carrying case, Adaptor for USB flash drive. (*8) |
