Accuracy |
+/-0.2% F.S. +/-1 digit |
Capacity |
20N |
50N |
Resolution |
0.01N |
Overload |
Approx. 150% F.S.
(It warns with light flashing and buzzer when the force is over 110% of capacity.) |
Sampling rate |
Max. 2000 data / sec (2000Hz) |
Testing speed |
120, 200, 300, 500, 1000, 1500mm / min (switchable) |

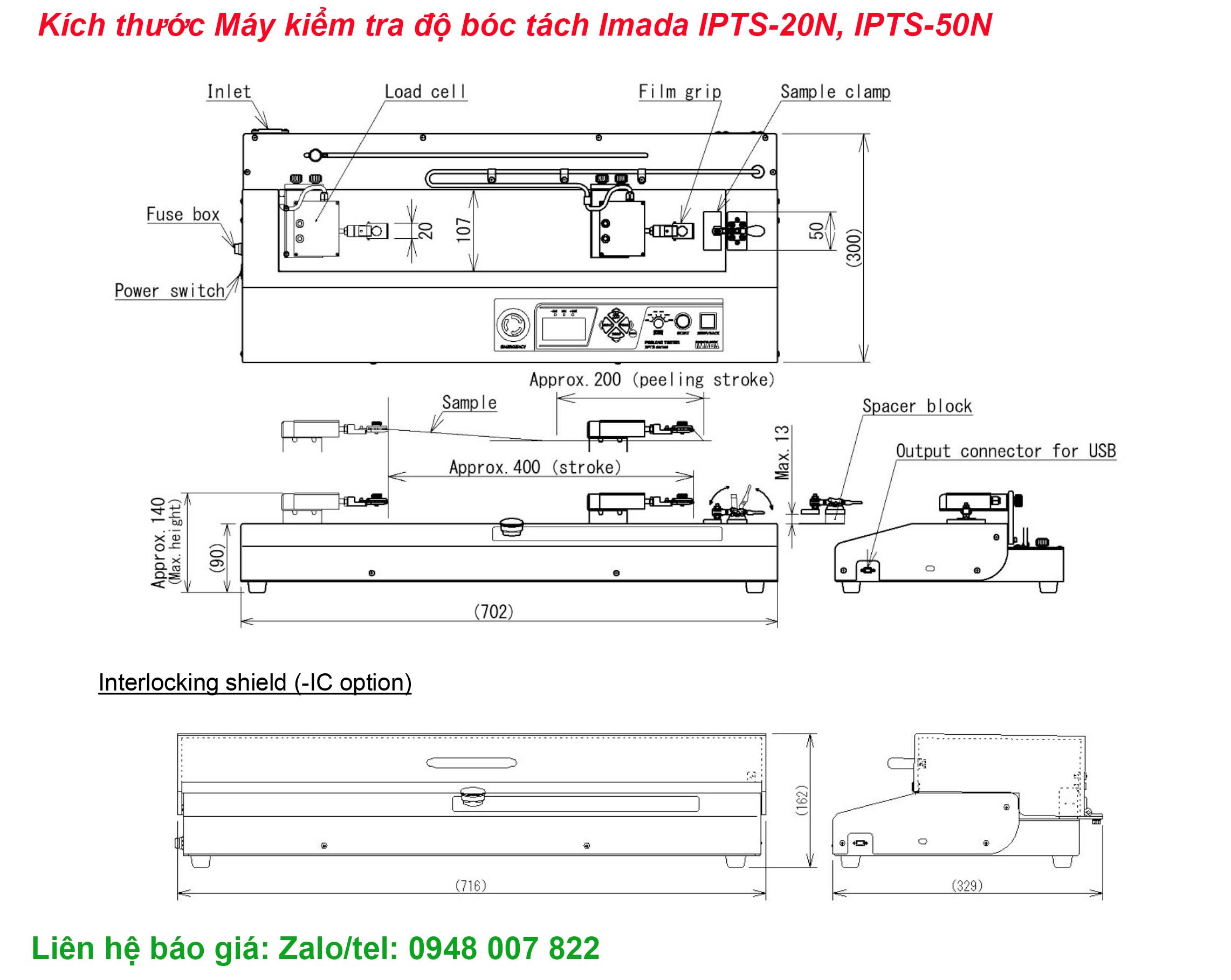

Stroke |
Travel of a load cell: Approx.400mm (Peeling length: Approx.200mm) |
Peel angle |
165-180 degree (Height and angle are adjustable.) |
Testable width of samples |
Adhesion:88mm (Glip: 20mm, Clamp: 50mm) |
Testable thickness of samples |
Glip: 3mm
Clamp: 13mm |
Safety device |
Emergency stop button, Overload prevention (Only when the power is turned ON) (*1) |
Power |
AC100 to 240V free input (*2) |
Weight |
Approx.11kg |
Operating environment |
Temperature: 0 to 40 degree Celcius / Humidity: 20 to 80% RH |
Accessory |
Force Recorder (graph drawing software), USB cable,
Power cable, Film grip, Spacer brock,
Inspection certificate, Instruction manual |
