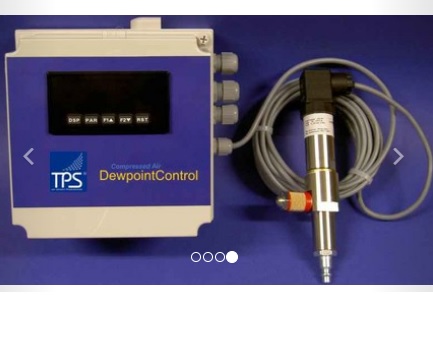

Thiết bị đo nhiệt độ điểm đọng sương khí nén Andjana DewpointControl
Measuring ranges calibrated:
-20 ... + 50 ° Ctp Type DP-T1 Output signal: 0 - 10 V
-80 ... + 20 ° Ctp Type DP-T2 Output signal: 4 - 20 mA
Display optional:
3-digit LED type DP-M
5-digit LED industrial display
Output signal 4-20 mA
Pressure range: -1 ... 50 bar DP-T1 / 2 option -1 ... 350 bar
Accuracy: + -0.5 ° Ctpd at -40 ° Ctp
Operating temperature: 0 ... + 50 ° C
Power supply: 24 VDC + -10%
Connection mech .: G 1/2 "stainless steel screw thread
Connection electr .: flange plug
Protection class: IP 65
CE: Compliant with EN 50081-2, EN 50082-2
