| Capacity |
1000N (100kgf) |
| Stroke |
60 mm |
| Force Direction |
Tension and compression |
| Travel Method |
Lever |
| Travel per 1 turn |
60mm per 170 degree |
| Function |
Mechanical stopper |
| Size |
See [Dimensions] |
| Weight |
Approx 7.3kg |
Mountable
Force Gauges |
Digital force gauge: DST, DSV, ZTS, ZTA series
Mechanical force gauge: FB, PS, PSM series |
| Accessory |
Gauge mounting plate, Screws to mount a force gauge, Tools, Instruction manual |

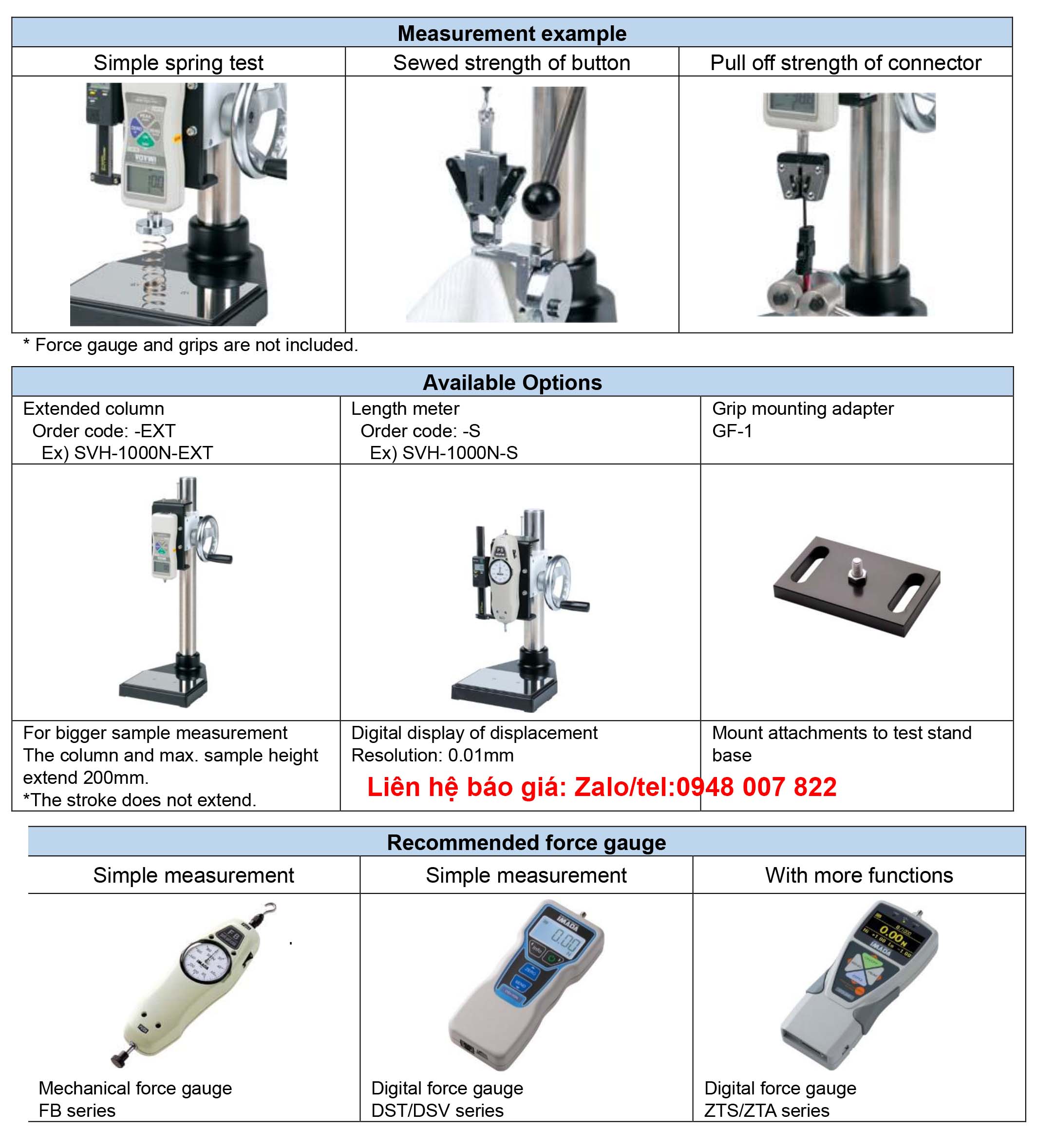

| Available Options |
Length meter, Long stroke, Grip mounting adapter GF-1 |
