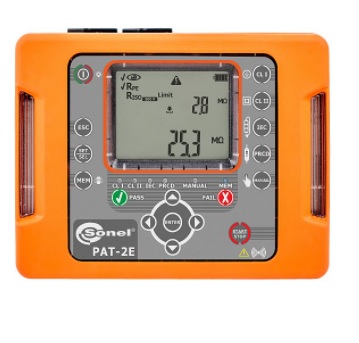

Máy kiểm tra thiết bị điện gia dụng Sonel PAT-2E

Máy kiểm tra thiết bị điện gia dụng Sonel PAT-2E

Model PAT-1 PAT-2 PAT-2E PAT-10
Visual inspection + + + +
Earth bond resistance I = 200 mA + (0,01…19,99 Ω) + (0,01…19,99 Ω) + (0,01…19,99 Ω) + (0,01…19,99 Ω)
Earth bond resistance I = 10 A - - - + (0,001…1,99 Ω)
Insulation resistance U = 250 V - - + (0,01…99,9 MΩ) + (0,01…99,9 MΩ)
Insulation resistance U = 500 V + (0,01…99,9 MΩ) + (0,01…99,9 MΩ) + (0,01…99,9 MΩ) + (0,01…99,9 MΩ)
Alternative leakage current + (0,01...19,9 mA) + (0,01...19,9 mA) + (0,01...19,9 mA) + (0,01...19,9 mA)
Touch leakage current - - + (0,001…4,999 mA) + (0,001…4,999 mA)
Differential leakage current - - + (0,10…19,9 mA) + (0,10…19,9 mA)
IEC cord test (RISO, RPE, Polarity) + + + +
PRCD (trip time for IΔn: x1/x5; 0° and 180°) - - 10 mA, 30 mA 10 mA, 30 mA
Built-in Memory - + + +
WiFi - + + +
Cooperation with printer - + + +
Data transmition to PC + + + +
Power supply battery powered (+ can measure in charging mode) battery powered (+ can measure in charging mode) 50 Hz (or 60Hz) U nominal. 220V.230V.240V / battery powered 50 Hz (or 60Hz) U nominal. 220V.230V.240V / battery powered
Measurement Category: CAT II 300V + + + +
Weight [kg] / size [cm] ok. 1.40 kg / 200 mm x 180 mm x 77 mm ok. 1.40 kg / 200 mm x 180 mm x 77 mm ok. 1.55 kg / 200 mm x 180 mm x 77 mm ok. 1.55 kg / 200 mm x 180 mm x 77 mm
