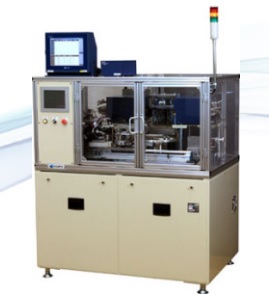

Thiết bị kiểm tra rò rỉ, độ kín sản phẩm Cosmo LZ-3000

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị kiểm tra rò rỉ, độ kín sản phẩm Cosmo LZ-3000

Thông tin sản phẩm

Thiết bị kiểm tra rò rỉ, độ kín sản phẩm Cosmo LZ-3000


Spec



Model

LZ-3000

Target workpieces

Small, sealed electronic components

Processing capabilities

Maximum of 60 pieces/minute (1.0 second/piece)

Gross leak test system

Micro-volume detection type air leak tester system

Number of air leak testers included:

8

Air leak tester specifications Model

LUV-880-KX03

LUV-880-KX05

LUV-880-KX2

Minimum workpiece internal clearance volume

0.3 mm^3 or more

0.5 mm^3 or more

2.0 mm^3 or more

Minimum detectable equivalent price standard leak amount

1.17×10^-6 Pa・m^3/sec

5×10^-6 Pa・m^3/sec

2×10^-5 Pa・m^3/sec

Target workpiece size

2.0×1.6 2.5×2.0mm

2.5×2.0 3.0×3.0 3.2×2.5mm

3.8×3.8 5.0×3.2 9.5×7.2mm

Workpiece supply method

Lined-up supply from part feeder with hopper

Workpiece transport system

Movable pick and place, left to right  two-part index

Inspection movements Full-automatic operation

■ Normal operation, ■ Calibrating operation, ■ Recovery operation

Manual operation

■ Individual operation, ■ Calibrating operation, ■ Return to original position, ■ Withdrawing operation

Decision processing

Collection of sorted out defective pieces in collection bucket

Self-diagnosis function

Self-diagnosis of tester malfunction, individual movement malfunction, pressure anomaly, etc.

Information output

Automatic collection of measurement result data on USB memory, RS-232C

Environment conditions

5~40℃

Power Source

Three-phase 380V and three-phase 200V, 50/60Hz  1.5kW

Air pressure source

0.4MPa or greater  250L/min  pipe size: Rc1/2 (PT1/2 internal thread)

Outer dimensions

1250 (W)×1450(Max1890)(H)×850(D) mm

Options

* Compatible with similar workpieces of multiple types

* Workpiece supply discharge (online compatible/ career magazine compatible)

Documents

Traceability documents, Operation manual
